These two manual pail tippers offer a convenient and easy way to load, unload and dispense five-gallon steel or plastic pails. They feature a variable height mechanical chime lock that allows for different height settings. Sturdy construction with 70 lb capacity.
Key features:
- Choice of standard blue or stainless steel pail tippers
- Convenient dispensing of five (5) gallon plastic or steel pails
- Back-saving design simplifies loading and unloading of pails
- Pail rotates manually for easy storage and accessibility
- Variable height mechanical chime lock allows incremental height adjustments
- Sturdy construction; 70 lb capacity
Available in two finishes:

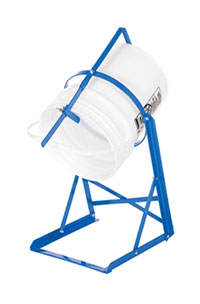

Steel Pail Tipper Blue Finish
Order 140000-B
Order 140000-B
$68.29

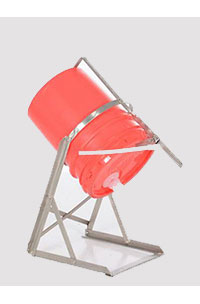

Stainless Steel Pail Tipper
Order 140000-S
Order 140000-S
$201.48
Specifications:
Floor Mounted
Overall Length: - 14.25"
Compatible Drum Size: 5-Gallon
Weight: 10 lbs
Manufacturer Warranty: 30 Days
Overall Length: - 14.25"
Compatible Drum Size: 5-Gallon
Weight: 10 lbs
Manufacturer Warranty: 30 Days
Uniform Capacity: 70 lb
Dispensing Height: 10"
Clearance between Legs: 12-1/2"
Diameter: 13"
Rotation Angle (degrees): 120°
Rotation (degrees): 135°
Overall Width: 14-5/8"
Overall Length: 14-1/4"
Overall Height: 30-1/8"
Maximum Pail Height: 17"
Usable Ring Opening Diameter: 11-3/4"
Clearance between Legs: 12-1/2"
Diameter: 13"
Rotation Angle (degrees): 120°
Rotation (degrees): 135°
Overall Width: 14-5/8"
Overall Length: 14-1/4"
Overall Height: 30-1/8"
Maximum Pail Height: 17"
Usable Ring Opening Diameter: 11-3/4"
Note: Prices provided for convenience and reference, but are subject to change without notice. For a formal price quotation, contact Gruber Systems.
